Low melting point solder development.

Expect phase compositions, thermal properties by thermodynamics calculation. Produce solders and analysis the microstructure and phase composition by SEM and EDS


▲ Flexible electronics require low process temperature and low thermal process stress





CALPHAD

  • CAlculation of PHase Diagram

  • Simulate phase compositions, thermal properties and microstructures by thermodynamics calculation












Microstructure of solder

▲ Analysis the microstructure and phase composition by SEM and EDS

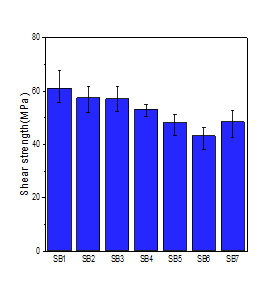

Shear strength

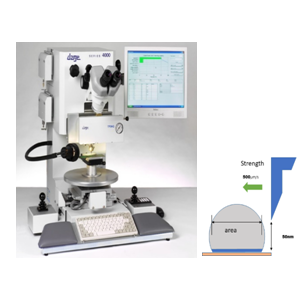

■ Measure the shear strength and other mechanical properties
